Bridging Microcontrollers and High-Speed RF Instrumentation
For decades, radio-frequency measurements above a few megahertz were the exclusive domain of benchtop spectrum analyzers, vector network analyzers, and software-defined radios driven by FPGAs or dedicated DSP engines. Those instruments delivered high performance but at high cost, large footprint, and power budgets incompatible with embedded or portable applications. Today, advances in microcontroller architecture and peripheral integration are enabling a new class of compact, low-power platforms that can directly coordinate high-speed RF front ends, bringing MHz-range measurement, automation, and signal processing into the embedded developer’s workflow.
Microcontroller Interfaces for RF Data Handling
At the heart of the approach is the microcontroller’s ability to ingest, buffer, and process streaming data from analog-to-digital converters running at tens of megasamples per second. External RF front-end chips downconvert the signal of interest, filter it, and present it to a high-speed ADC. The MCU then captures the raw IQ samples using advanced peripherals such as multi-channel DMA engines, dual-port memory controllers, and high-speed serial interfaces like SPI or I2S operating at elevated clock rates.
Ping-pong buffering in SRAM allows the processor to handle continuous streaming without stalls, while hardware-based decimation chains built into some modern microcontrollers offload downsampling tasks that would otherwise consume core cycles. Even without native hardware acceleration, optimised firmware routines running on Cortex-M7 or similar cores can execute real‑time FFTs, power detection, and modulation recognition at rates sufficient for many field-test and monitoring scenarios.
Peripheral Advances and RF-SoC Integration
The tight coupling between the microcontroller and the RF front end is enabled by a suite of on‑chip peripherals that have grown more capable with each generation. High‑resolution timers can generate precise local‑oscillator control signals, while programmable digital I/O pins serve as chip‑select and configuration lines for phased‑array gain blocks or tunable filters. The emergence of microcontrollers with integrated high‑speed ADCs and comparators, once limited to low‑frequency sensing, now reaches input bandwidths capable of directly sampling intermediate‑frequency signals, simplifying the overall signal chain.

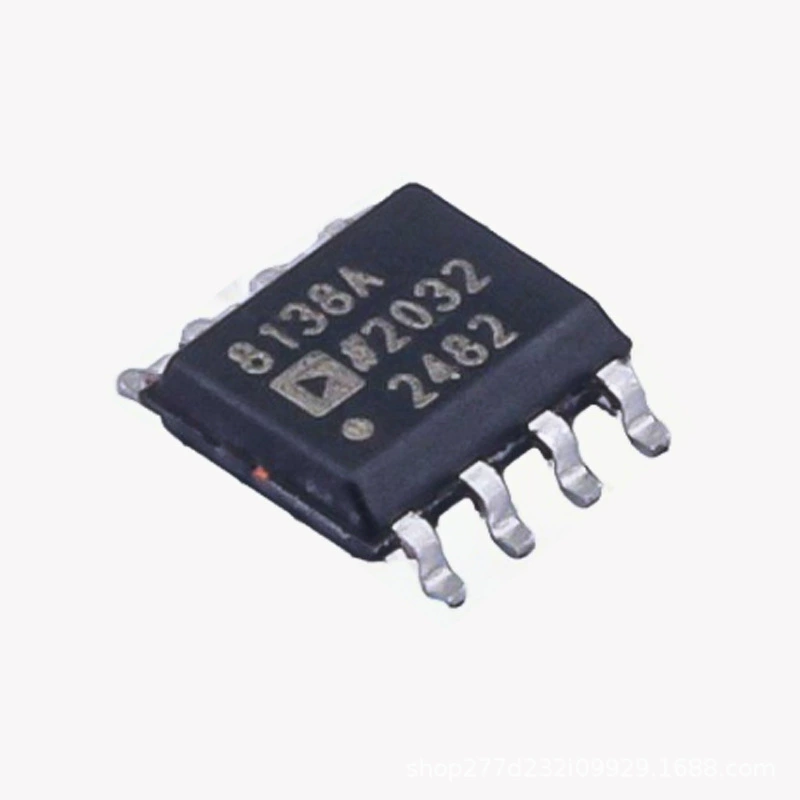

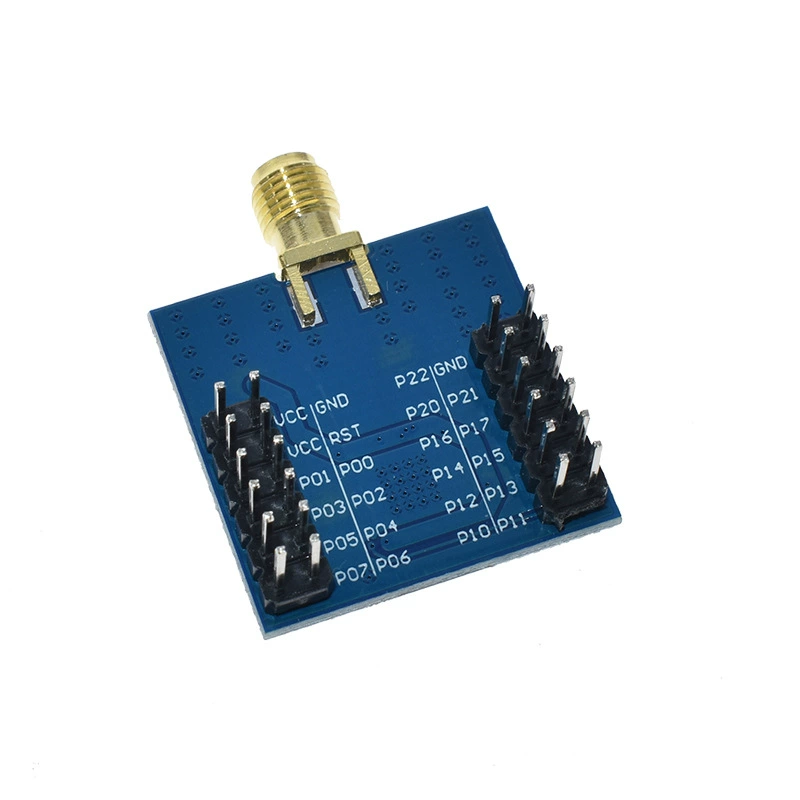

Complementing the MCU, compact Analog & Power ICs handle the critical RF‑specific functions. Low‑noise amplifiers, quadrature modulators, and PLL‑based frequency synthesizers are available in tiny packages that can be placed next to the microcontroller on a single board, creating a complete RF‑to‑bits solution. Development is further accelerated by ecosystem Modules & Dev Boards that pre‑integrate a microcontroller, the RF front end, and the necessary power management, letting engineers focus on application software rather than high‑frequency layout.
Shifting Industry Dynamics and Application Spaces
Cost pressure and the drive for distributed intelligence are pushing RF instrumentation out of the lab and into the field. Telecom operators need lightweight, battery‑powered spectrum monitors for 5G interference hunting; automotive suppliers require portable radar‑validation tools on the factory floor; and IoT product designers want to characterise antenna performance during prototyping without investing in full‑size test gear. A microcontroller‑based RF subsystem can satisfy these needs at a fraction of the traditional bill‑of‑materials, while also supporting over‑the‑air firmware updates and cloud connectivity for remote data aggregation.
Open‑source software frameworks for software‑defined radio have lowered the barrier further, allowing standard GCC‑based firmware to incorporate libraries for fast convolutions, decimation, and protocol decoding. Combined with a low‑cost microcontroller board and a commercially available RF front‑end module, a working spectrum analyser with graphical display can be built in a matter of days, a workflow that previously demanded specialised FPGA toolchains.
As microcontroller vendors continue to push clock speeds beyond the gigahertz mark and integrate dedicated RF‑friendly processing units, the line between a “host processor” and a “measurement engine” will blur. The next likely milestone is the appearance of off‑the‑shelf reference designs that pair a next‑generation MCU with a multi‑band RF transceiver and embedded AI accelerators, enabling on‑device signal classification without external computing. Early silicon announcements from major semiconductor fabs suggest such integrated platforms could reach evaluation‑kit stage within the next product cycle, further democratising RF instrumentation.
Why This Matters
By shifting RF measurement from standalone instruments to microcontroller-based platforms, engineers can slash cost and size while enabling distributed spectral monitoring, portable test gear, and intelligent radio systems. This opens new applications in IoT, 5G maintenance, and agile manufacturing where real-time, in-situ RF analysis is essential.
FAQ
How does a microcontroller control an RF front end?
The microcontroller uses digital interfaces such as SPI or I2S to configure gain, frequency, and filter settings, while capturing digitized IQ samples from an analog-to-digital converter. Advanced peripherals like DMA and hardware math units help process the streaming data in real time.
What measurement bandwidth can be achieved with this approach?
The practical bandwidth depends on the ADC sample rate and the MCU’s processing capability, but systems capturing tens of megahertz of instantaneous bandwidth are feasible using commodity microcontrollers and external RF downconverters.
Why is this trend important for embedded developers?
It allows developers to build custom RF test, monitoring, and communication systems on familiar embedded platforms, significantly reducing cost, size, and complexity compared to traditional benchtop instruments or FPGA-based designs.
Are there ready-to-use development kits available?
Yes, many semiconductor manufacturers offer development boards that combine a microcontroller with a companion RF front-end IC and example software to jump-start prototyping of spectrum analyzers, software-defined radios, and wireless sensors.
